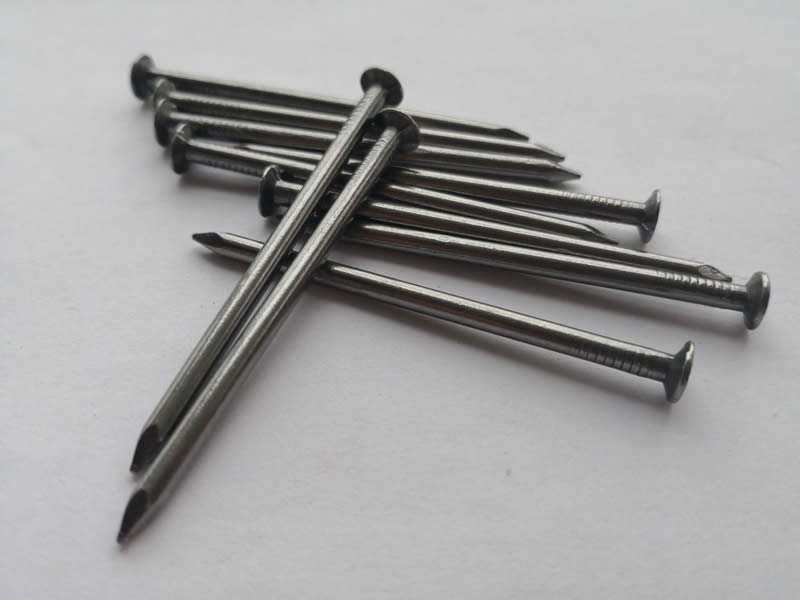

Common Nails, also known as construction nails or common wire nails, are the most widely used type of steel nails for general construction and framing. These nails feature a thicker and larger shank compared to box nails, along with a wide, flat head, smooth shank, and a diamond-shaped point, providing excellent strength and durability. Commonly used in carpentry, wood framing, and general indoor construction projects, these nails are ideal for structural applications.
Specifications:
- Material: Q195 Low carbon steel for superior toughness and flexibility.
- Diameter: Available in 8, 9, 10, 12, and 13 gauge for various applications.
- Length: 1″, 2″, 2-1/2″, 3″, 3-1/4″, 3-1/2″, 4″, and 6″ options for different fastening requirements.
- Size Range: 1d to 60d to accommodate various project needs.
- Shank Type: Smooth shank for easy penetration and secure fastening.
- Head Type: Round and flat for consistent driving and a solid connection.
- Surface Treatment: Available in bright, galvanized, polished, and vinyl-coated finishes for corrosion resistance and longevity.
- Standards Compliance: Conforms to ASTM F1667 and ASTM A153 for quality assurance and performance.
Packaging:
- Weight Options: Available in 11 lbs per box, 2 lbs per box or bag, 1 lb per bag, or 55 lbs per carton. Custom packaging is available upon request.
- Inner Packaging: Each box contains 5 kg of nails, with moisture-proof packaging to ensure product quality.
- Outer Packaging: Carton dimensions are 220mm x 220mm x 70mm, designed for secure storage and transport. Pallet dimensions are 1100mm x 900mm x 830mm.
- Custom Shipping Marks: Custom-designed shipping marks can be printed on both sides of the carton for easy identification during transport.
Applications:
Common nails are ideal for a wide range of construction projects:
- Framing: Perfect for securing wood in walls, floors, and roofs in residential and commercial buildings.
- Carpentry: Widely used in wooden structures, such as furniture or cabinetry.
- Wood Structural Panels: Commonly employed in shear walls and other load-bearing wood panel applications.
- General Indoor Construction: Suitable for a variety of indoor construction tasks, offering reliable and sturdy fastening.
Advantages:
- Increased Strength: The thicker shank and galvanized coating offer greater strength, durability, and resistance to corrosion.
- Versatility: Available in various sizes and finishes, these nails are suited for different construction needs.
- Compliance with Standards: Conforms to ASTM F1667 and ASTM A153 standards, ensuring high quality and performance in demanding construction environments.
| Size | Length | Diameter | Kg/1000pcs | Pcs/1Kg |
| 3/8” x 20 BWG | 9.52mm | 0.89mm | 0.046 | 21730 |
| 1/2” x 19 BWG | 12.7mm | 1.07mm | 0.088 | 11360 |
| 5/8” x 18 BWG | 15.87mm | 1.25mm | 0.152 | 6580 |
| 3/4” x 17 BWG | 19.05mm | 1.47mm | 0.25 | 4000 |
| 1” x 16 BWG | 25.4mm | 1.65mm | 0.42 | 2380 |
| 1-1/4” x 15 BWG | 31.75mm | 1.83mm | 0.65 | 1540 |
| 1-1/2” x 14 BWG | 38.1mm | 2.11mm | 1.03 | 971 |
| 1-3/4” x 13 BWG | 44.45mm | 2.41mm | 1.57 | 637 |
| 2” x 12 BWG | 50.8mm | 2.77mm | 2.37 | 422 |
| 2-1/2” x 11 BWG | 63.5mm | 3.05mm | 3.58 | 279 |
| 3” x 10 BWG | 76.2mm | 3.4mm | 5.35 | 187 |
| 3-1/2” x 9 BWG | 88.9mm | 3.76mm | 7.65 | 131 |
| 4” x 8 BWG | 101.66mm | 4.19mm | 10.82 | 92.4 |
| 4-1/2” x 7 BWG | 114.3mm | 4.57mm | 14.49 | 69 |
| 5” x 6 BWG | 127mm | 5.16mm | 20.53 | 48.7 |
| 6” x 5 BWG | 152.4mm | 5.59mm | 28.93 | 34.5 |
| 7” x 4 BWG | 177.8mm | 6.05mm | 40.32 | 24.8 |
| Name | Common nails |
| Material | Q195, Q235, etc |
| Head | flated head,checkered head, round head |
| Surface treatment | polishing, silver-white zinc plating, blue-white zinc plating, colorful zinc plating, mechanical zinc plating, hot-dip galvanizing, zinc infiltration, black cooking, polishing,phosphating, copper plating, nickel plating |
| Usage | Building construction, decoration field, bicycle parts, wooden furniture, electrical component, household and so on |
