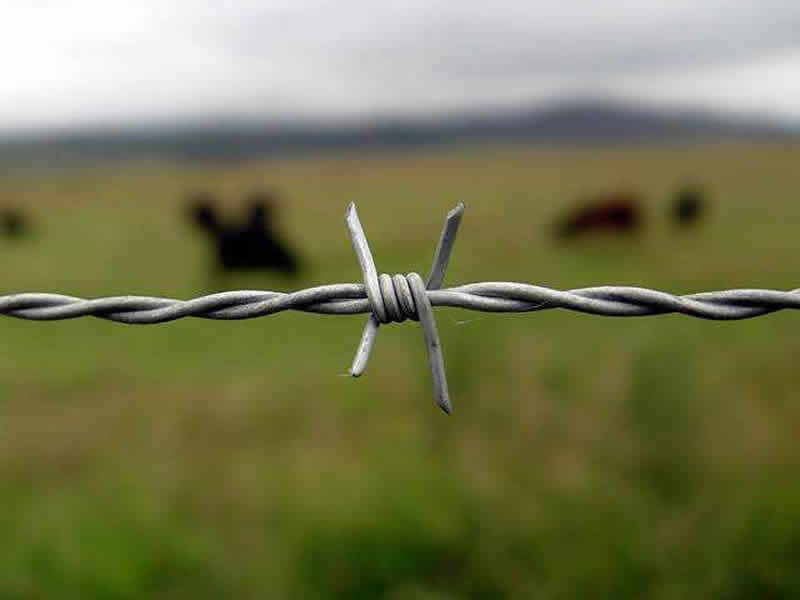

Barbed Wire is a highly effective and versatile security fencing solution, designed to deter intruders and protect property. Manufactured using galvanized steel wire, stainless steel wire, or PVC coated wire, barbed wire provides a reliable barrier that is both durable and resistant to harsh environmental conditions. It is commonly used in conjunction with other fencing types, such as chain link or welded fences, to enhance security in residential, agricultural, and industrial applications.
Specifications:
- Material Options:
- Galvanized steel wire
- Stainless steel wire
- PVC coated wire (with color options such as green, blue, yellow, orange, and gray)
- Types of Barbed Wire:
- Galvanized Barbed Wire: Ideal for protecting farmland, sports grounds, or used alongside concertina razor wire. Often installed above fences to prevent climbing.
- PVC Coated Barbed Wire: Features a galvanized iron core and is coated with PVC for additional protection, available in a variety of colors for aesthetic or environmental blending.
- Weaving Types:
- Single strand barbed wire
- Double strand double twisted barbed wire
- Double strand common twisted barbed wire

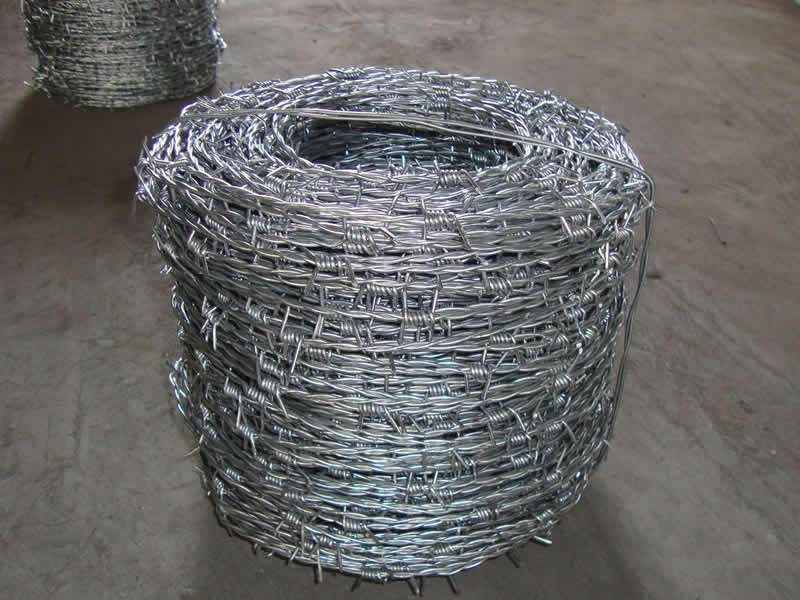

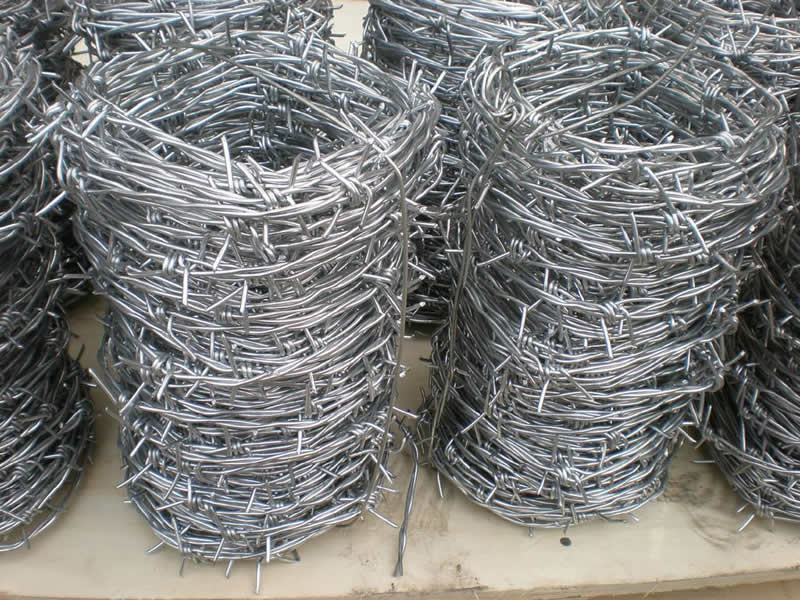

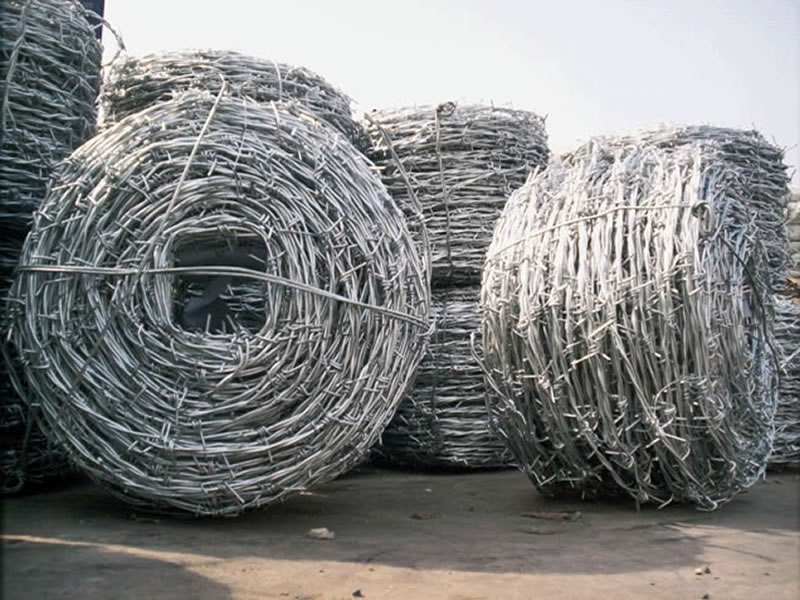

- Packing Options: Coils of 25 kg or 50 kg, lined with PVC strips and wrapped in PVC or hessian cloth for protection during transportation.
Features:
- High Security: The sharp edges of the barbs act as a strong deterrent against intruders and trespassers.
- Durable Construction: Barbed wire is highly resistant to cutting or destruction due to its rigidity, tensile strength, and stability.
- Corrosion and Rust Resistance: Available in galvanized or PVC-coated options, ensuring resistance to corrosion, acid, alkali, and harsh environmental conditions.
- Versatile Application: Can be used independently or in combination with other fencing types for enhanced security.
- Ease of Installation: Simple to install and uninstall, making it a flexible option for temporary or permanent security needs.
- Low Maintenance: Requires minimal upkeep while offering a long service life.
Applications:

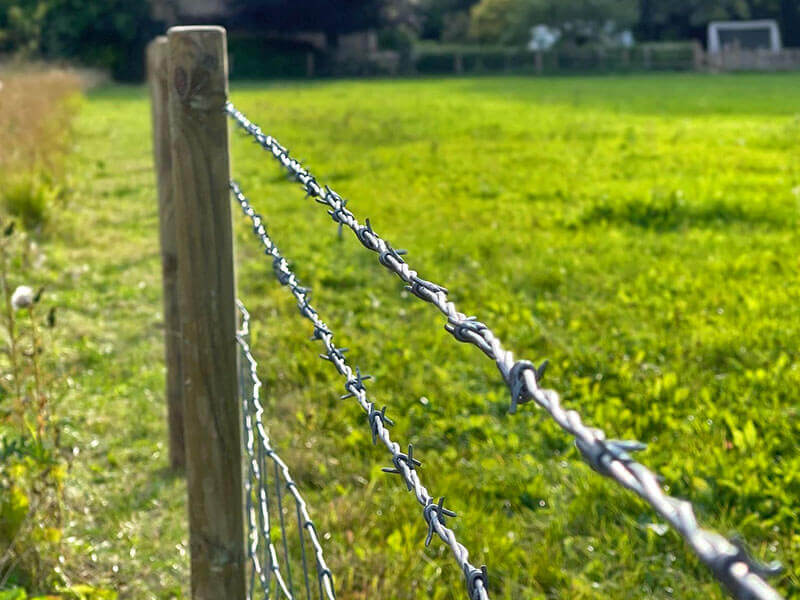

- Agricultural Use: Commonly used to enclose farmlands, protecting crops and livestock from trespassers and wildlife.

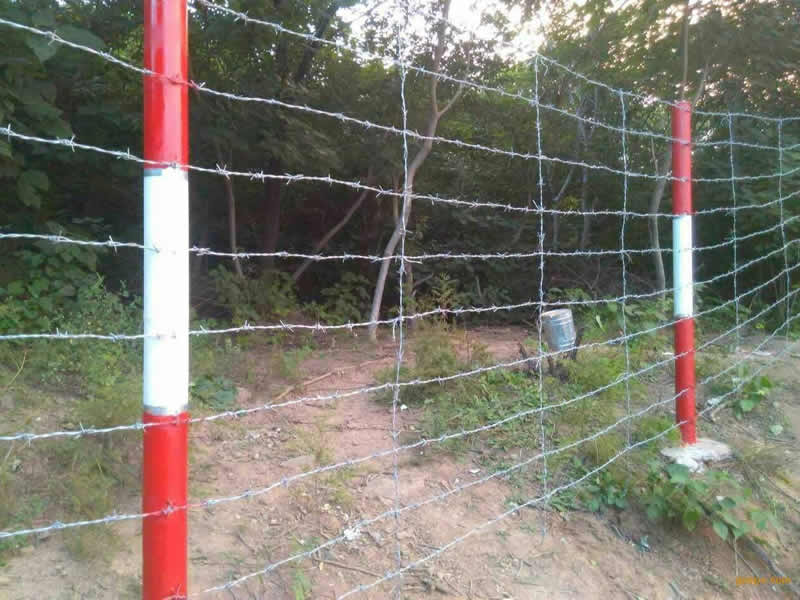

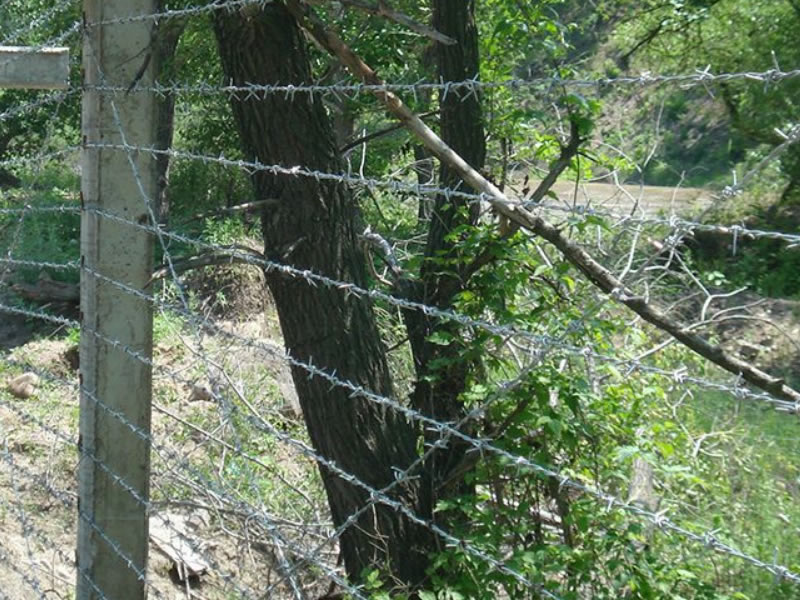

- Residential and Commercial Security: Often installed on top of existing fences to deter intruders, providing an additional layer of security for properties.
- Industrial Sites: Used to safeguard warehouses, construction sites, and factories from unauthorized access.
- Prisons and Military Zones: Provides a high level of security in sensitive areas where preventing intrusion is critical.
- Sports Grounds and Public Areas: Enhances perimeter security, preventing climbing or access to restricted areas.
Specification List:
Material | Weaving type | Wire gauge(SWG) main wire * barbed wire | Barbed Distance(mm) | Barbed Length(mm) | |
1.Electric galvanized barbed wire; 2.Hot-dipped galvanized barbed wire | 1.Single Twisted 2.Double Twisted | 10#*12#(3.2*2.6mm) | 75-150mm(that is 3 or 4 or 5 or 6) | 15-30mm | |
12#*12#(2.6*2.6mm) | |||||
12#*14#(2.6*2.0mm) | |||||
14#*14#(2.0*2.0mm) | |||||
14#*16#(2.0*1.6mm) | |||||
16#*16#(1.6*1.6mm) | |||||
16#*18#(1.6*1.2mm) | |||||
3.PVC coated barbed wire 4.PE barbed wire | Before coating | After coating | 75-150mm(that is 3 or 4 or 5 or 6) | 15-30mm |
